200 400µm Medical Single-Use Reusable Surgery Fiber

200 400µm Medical Single-Use Reusable Surgery Fiber

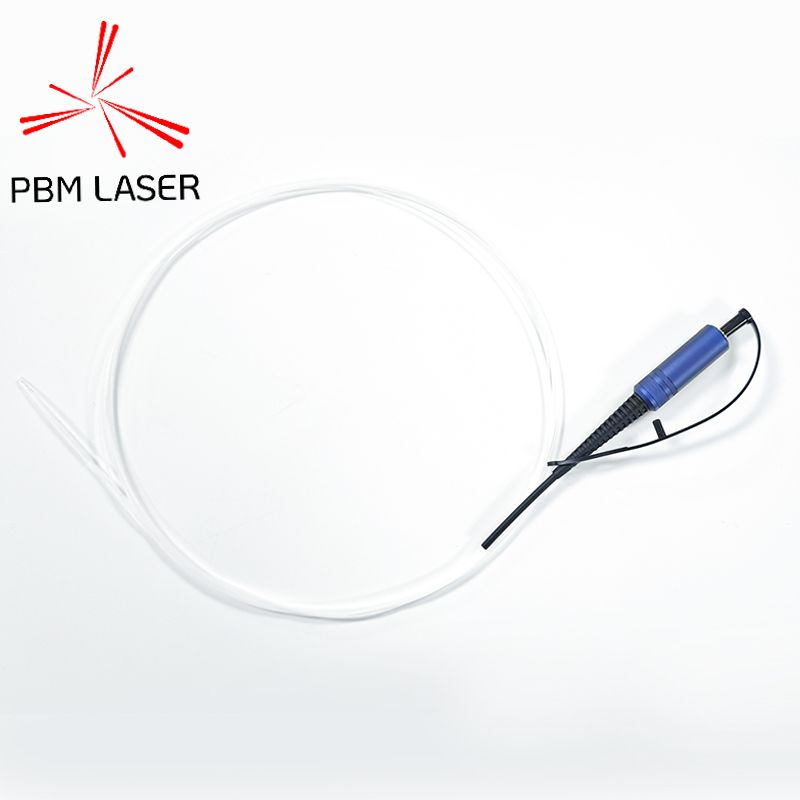

FiberMedix Surgical Fibers are versatile and reliable tools for laser surgery to cut or vaporize soft tissues, PBM's leading medical fiber technology offers greater light transmission efficiency, higher carrying capacity of up to 200W, better bending performance up to 270 degrees, and can be used with a variety of soft and rigid lenses, with both disposable and reusable options. The product is available in both disposable and reusable options for superior performance, precision, and efficiency.

The Advantage of 200 400µm Medical Single-Use Reusable Surgery Fiber:

1.Multi-wavelength compatibility: FDA approved to accept and transmit a wide range of wavelengths from 400nm to 2400nm, providing flexibility and cost-saving advantages.

2. SMA-905 Compatibility: Equipped with an SMA-905 connector, it is compatible with most laser systems, handpieces, and endoscopes on the market.

3. Multiple Sizes: Available in a variety of core sizes for a wide range of soft tissue laser procedures.

4. Efficient Energy Output: Non-tapered grooved connectors are used to concentrate the laser energy in the inner core, increasing output efficiency and reducing the risk of fiber breakage.

5. Excellent bending performance: The inner diameter is less than 400um and can be bent over 270°, which can reach narrow areas such as the renal pelvis and is suitable for soft tissue surgery.

6. High luminous efficacy: Pure silicon core, total internal reflection, reducing the risk of light leakage and ensuring the highest luminous efficacy.

7. Disposable optical fiber: All optical fibers are aseptically packaged for single use only, reducing preparation, cleaning, and disinfection time for healthcare professionals.

8. Reusable Laser Fiber: Reusable optical fibers are aseptically packaged with wear-resistant sheaths, reducing the risk and cost of reuse.

Specification of 200 400µm Medical Single-Use Reusable Surgery Fiber:

Connector type: SMA-905

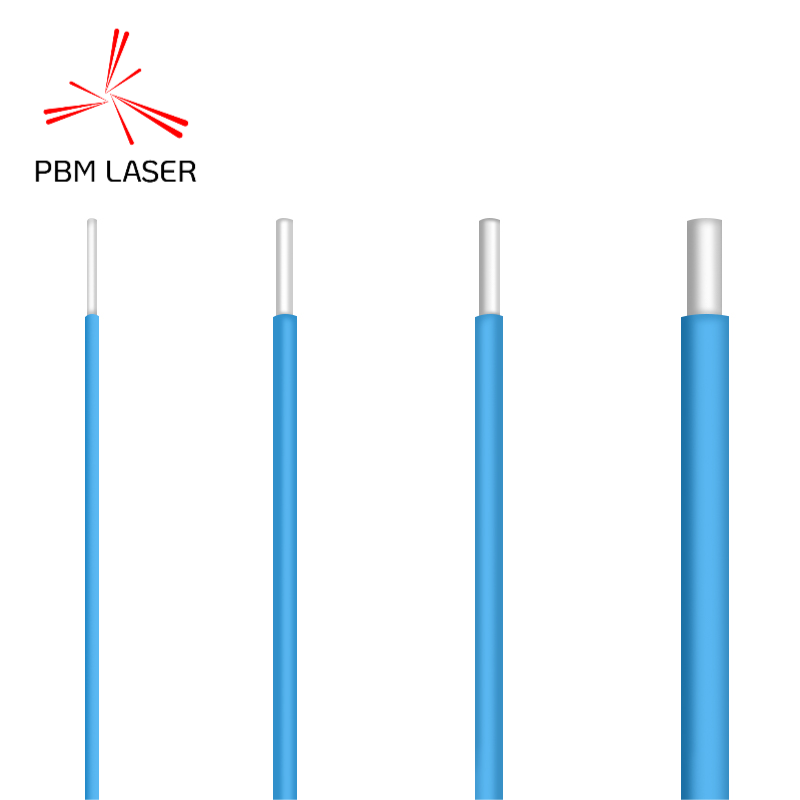

Inner diameter (μm): 300, 400, 600, 800

Numerical Aperture NA: 0.22

Maximum power: 40-200 Watts

Coating material: Silicone. Hardclad and Polyimide optional

Flat tip design

Disposable and reusable options

Non-sterile packaging, 5pcs in a box

Length: 3 meters (2m, 2.5m, 3.5m, 4m Optional)

Can be customized according to customer's requirements

Indications and Applicable Departments of 200 400µm Medical Single-Use Reusable Surgery Fiber:

1. ENT surgery
2. Gastrointestinal surgery
3. Gynecological Surgery
4. Skin Surgery
5. Neurosurgery
6. Cardiac Surgery
7. Plastic Surgery
8. Urological Surgery
9. Orthopaedic Surgery
10. Lipolysis
11. Vascular Surgery
12. Stomatology

Production Details of the 200 400µm Medical Single-Use Reusable Surgery Fiber:

Contact us now for product brochure and Inquiry.
